Exporter Of ASTM B670 Inconel 718 Seamless Pipes, Inconel 718 Hollow Pipe Dealer
UNS N07718 Welded Pipe Supplier, Best Price Of Inconel 718 Pipes In Mumbai, India
Inconel WERKSTOFF NR. 2.4668 Pipe, Alloy 718 Flex Pipe Stockist

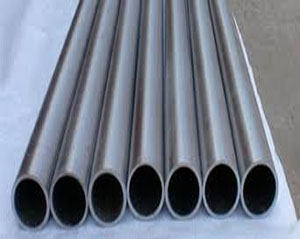

718 Inconel Pipe
718 Inconel Welded Pipe

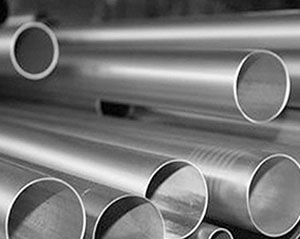

718 Inconel Seamless Pipe
Tubewell is wholesaler highest quality corrosion and temperature resistant Inconel 718 Pipe. We are PED approved manufacturer & Govt. of India recognized Export House and an ISO 9001:2008, 18001:2007, 14001:2004 accredited company. We supply precision smooth bore Inconel 718 Seamless Pipe for marine environments, brackish water, bleaching operations, closed loop water systems and some food processing applications.
High-performance nickel alloys for sour oil and gas fields. Inconel alloy 718 ASTM B670 Pipe hardened nickel-based alloys and cold-worked solid nickel-based alloys offer many advantages such as high strength, toughness, low magnetic permeability and excellent corrosion resistance. Alloy 718 WERKSTOFF NR. 2.4668 Pipe has proven to be a valuable and versatile material that is able to solve a wide variety of design and application problems. Inconel 718 Pipe resists low temperature aggressive corrosion environments, as well as hostile high temperature environments too. The excellent weldability of the alloy, and its ability to be joined very successfully to other alloys with different compositions.
Inconel 718 exhaust Pipe & other nickel based alloys from these ranges are ideal for cost-effective manufacture of pumps, valves and process control equipment in oil and gas extraction. Inconel 718 Sch 40 pipe is a nickel-chromium-molybdenum super alloy designed for resisting a wide range of severely corrosive environments, crevice corrosion and pitting. This nickel alloy also displays exceptionally high yield, tensile, and creep-rupture properties at high temperatures. It is used from cryogenic temperatures up to long term service at 1200° F.
Table of contents
- ASME SB670 Inconel 718 Pipe Price
- Inconel UNS N07718 Pipe Specification
- Inconel DIN NR. 2.4668 Seamless Pipe
- ASME SB725 Inconel 718 Welded Pipe
- 781 Inconel Pipe Mechanical Properties
- Inconel 718 Pipe Yield Strength
- Inconel WERKSTOFF NR. 2.4668 Pipe Sizes
- Inconel ® 718 Pipe Stock
- Inconel 718 Pipe Pressure Rating
ASME SB670 Inconel 718 Pipe Pric
| Inconel 718 Pipe Price | Origin | Price in INR | Price in USD | Price in Euro | Others |
|---|---|---|---|---|---|
| Price in USA | USA | Rs 4500/- per kg | $65 per kg | €56 per kg | Fix Length |
| Price in India | Indian | Rs 3200/- per kg | $46 per kg | €39 per kg | Cut to Size |
| Price in UK / Europe | European | Rs 3700/- per kg | $54 per kg | €46 per kg | Fix Length |
| Price in Japan | Japanese | Rs 3500/- per kg | $51 per kg | €43 per kg | Fix Length |
Click here for complete (products, grade & size wise)
Inconel UNS N07718 Pipe Specification
| Alloy 718 Pipe Specification | ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517 |
|---|---|
| Alloy 718 Seamless Pipe size | 4 to 219mm W. T.: 0.5 to 20mm |
| Inconel 718 Welded Pipe size | 5.0 mm – 1219.2 mm |
| Alloy 718 EFW Pipe size | 5.0 mm – 1219.2 mm |
| Inconel 718 Pipe Schedule | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
| Inconel 718 Pipe Form | Hollow, Square, Round, Rectangular , Straight Pipes, Hydraulic Etc. |
| Alloy 718 Pipe End | Plain End, Beveled End, Treaded. |
| Inconel 718 Pipe Length | Single Random, Double Random & Cut Length. |
| Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Marking | All Inconel Alloy 718 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Manufacturers of Inconel 718 Pipe |
|
| Inconel Alloy 718 Pipe Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Our Presence | USA, Canada, Australia, UK, Malaysia, Poland, Iran, Italy, Singapore, UAE |
| Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 |
| Test |
|
| Specialized in | Large Diameter Alloy 718 Pipe |
| We can also cut, thread, and groove Inconel 718 Pipes to meet your specifications. | |
Types of Inconel 718 Seamless & Welded Pipe
|
|
Inconel 718 Pipe suppliers
Inconel 718 Seamless Pipe

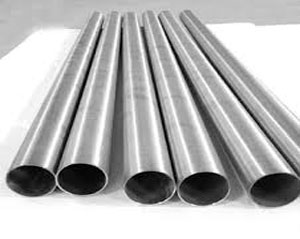

Inconel 718 Welded Pipe

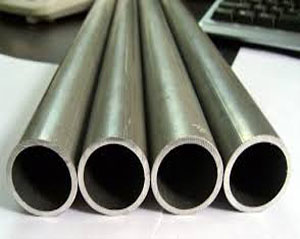

Inconel 718 Exhaust Pipe

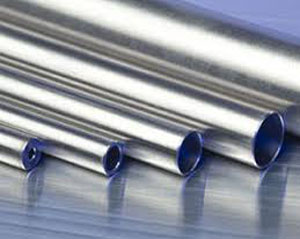

Inconel 718 Pipe material
Inconel 718 Weld Pipe
Inconel 718 Lined Pipe
Inconel 718 Square Pipe

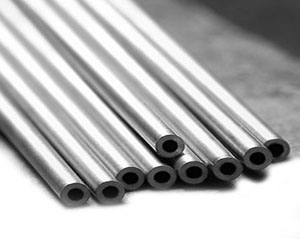

Inconel 718 Clad Pipe
Inconel 718 Flex Pipe

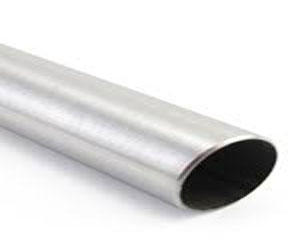

Inconel 718 Rectangle Pipe

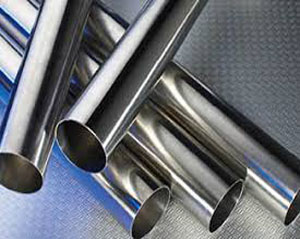

Inconel 718 Square Pipe (Radius Corners)
Inconel 718 Hollow Pipe
Inconel 718 Pipe composition & technical information
Inconel 718 Alloy Tube Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
781 Inconel Tubing Mechanical Properties
Inconel 718 Pipe Yield Strength
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Equivalent Grades for Inconel 718 Seamless and Welded Tubes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 718 | 2.4668 | N07718 | NCF 718 | – | – | – | – |
Alloy 718 Tube Physical Properties
| Density | ||
| Specific Gravity | ||
| Melting Range |
Inconel WERKSTOFF NR. 2.4668 Pipe Sizes
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Inconel ® 718 Pipe Stock
Here is a list of our complete stock of Inconel 718 Pipe
Inconel Alloy 718 Pipe
| BEST PRICE OF | ||
|---|---|---|
|
|
|
Inconel 600 Pipe Pressure Rating
| Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
